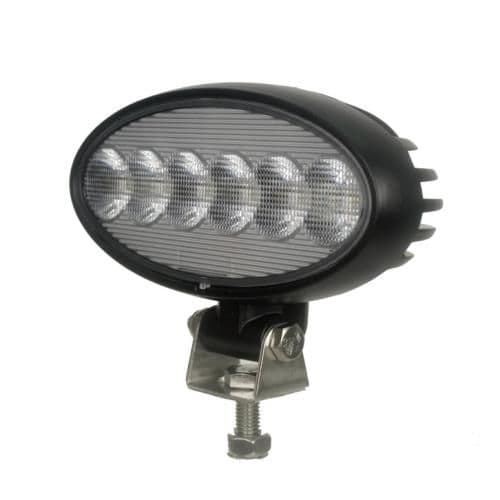

JOHN DEERE REPLACEMENT OVAL WORK LIGHT - 60W

60 Watt LED Work Light, 4800 Lumen

(Suitable for John Deere*, R Series)

General Characteristics

• Housing: Diecast Aluminium
• FloodBeam
• 60w LED Cab Work Light
• 9/32V
• 50,000h
• IP68
• ECE R10 Approved
• EMC - CISPR25 Class 4 (Radio Frequency Suppression)
• Supplied With 7024 Plug & Socket
• Dimensions 173 x 115 x 73mm

Technical Light Properties

• Light Colour: Cold white
• Colour temperature: 6000K

Electrical Characteristics

• Nominal lamp power: 60 Watt
• 60W high intensity CREE XTE LEDs
• Suitable for 9-32V DC
• 4800lumens
• Lux Reading: 50Mtr @ 12Lux
• Lux Reading: 186Mtr @ 1Lux
• Vibration Test to 15G

Dimensions

• Lamp width: 173 mm
• Lamp height: 115 mm
• Lamp thickness: 73 mm

*O.E.M Ref: RE574752

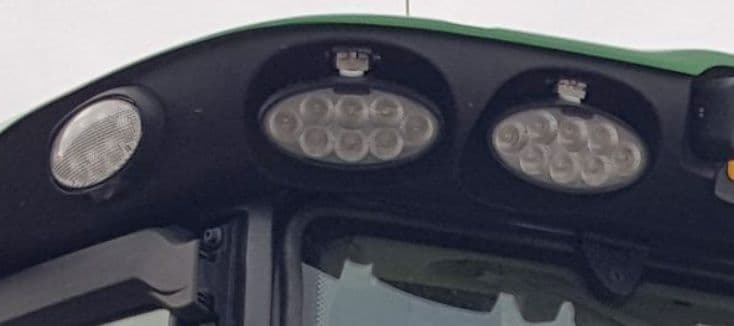

*Compatible with the following:

6R/7R/8R John Deere Series

John Deere

5M Series
5100 M, 5070 M, 5080 M, 5090 M, 5075 M, 5085 M, 5115 M, 5095 M, 5065 M, 5105 M

5R Series
5125 R, 5090 R, 5080 R, 5100 R, 5115 R

6R Series
6105 R, 6115 R, 6125 R, 6140 R, 6150 R, 6170 R, 6190 R, 6210 R, 6130 R, 6135 R, 6145 R, 6155 R, 6175 R, 6215 R, 6230 R, 6250 R, 6110 R, 6120 R, 6195 R

7R Series
7210 R, 7230 R, 7250 R, 7270 R, 7290 R, 7310 R, 7200 R, 7260 R, 7280 R, 7215 R

8R Series
8245 R, 8270 R, 8295 R, 8320 R, 8335 R, 8345 R, 8370 R, 8225 R, 8310 R, 8235 R, 8260 R, 8285 R, 8360 R, 8400 R, 8230 R

9R Series
9370 R, 9420 R, 9470 R, 9520 R, 9570 R, 9620 R, 9410 R, 9360 R, 9560 R, 9510 R, 9460 R

*Original Equipment names, series numbers & images are quoted and shown for reference purposes only and are not intended to infer that our replacement parts are used as original equipment
